OverDrive Custom Guitar Works' Custom Built Black Strat®
This Guitar Is Not For Sale
This Guitar Was Custom Assembled In The OverDrive Custom Guitar Works' Shop
Black Strat #6 - Last Complete Build Project

Parts We Used To Complete The Project

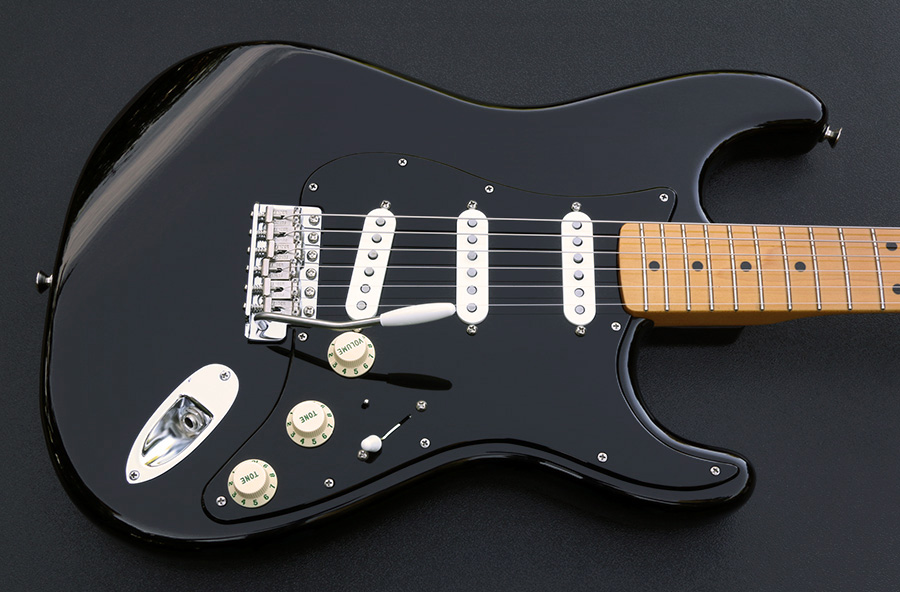

  • Used 2013 American Special Black Body

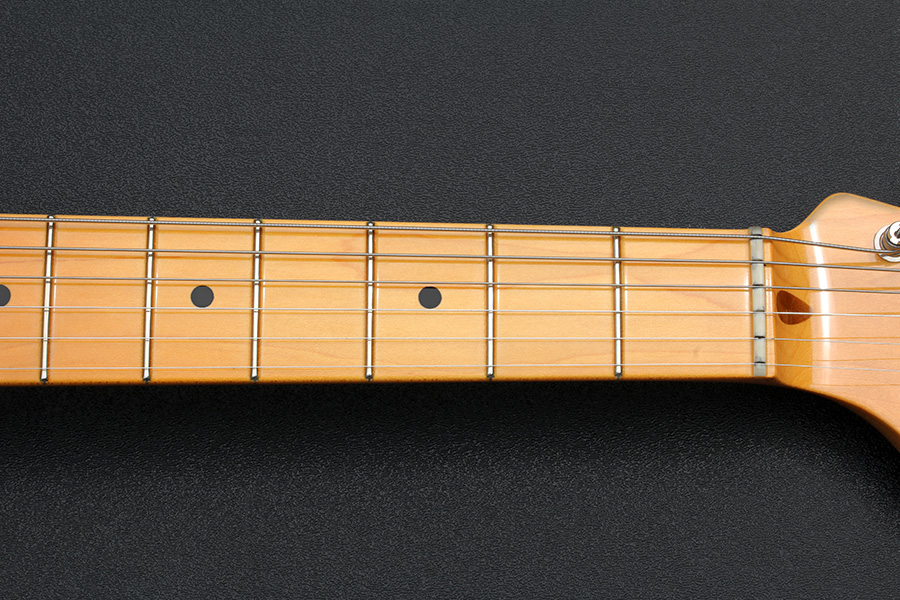

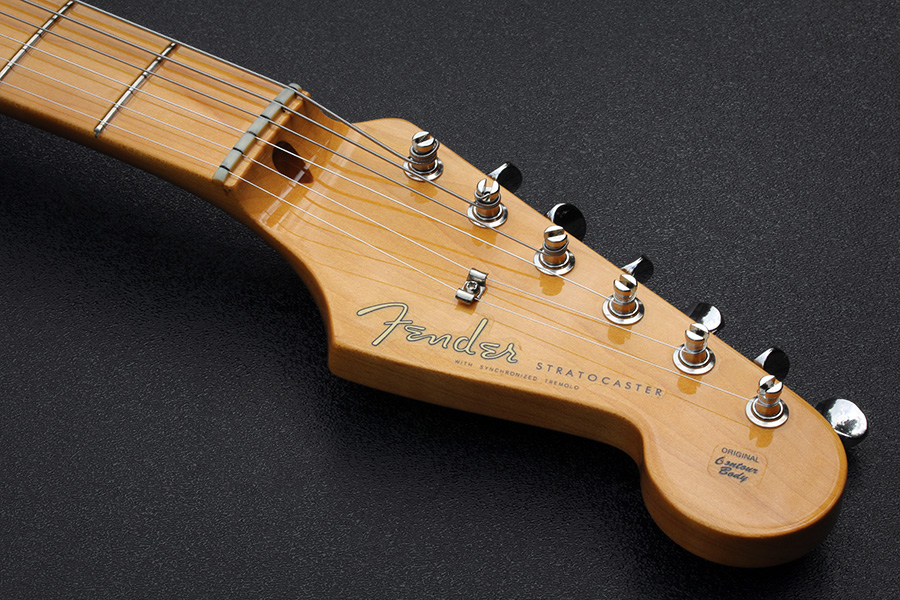

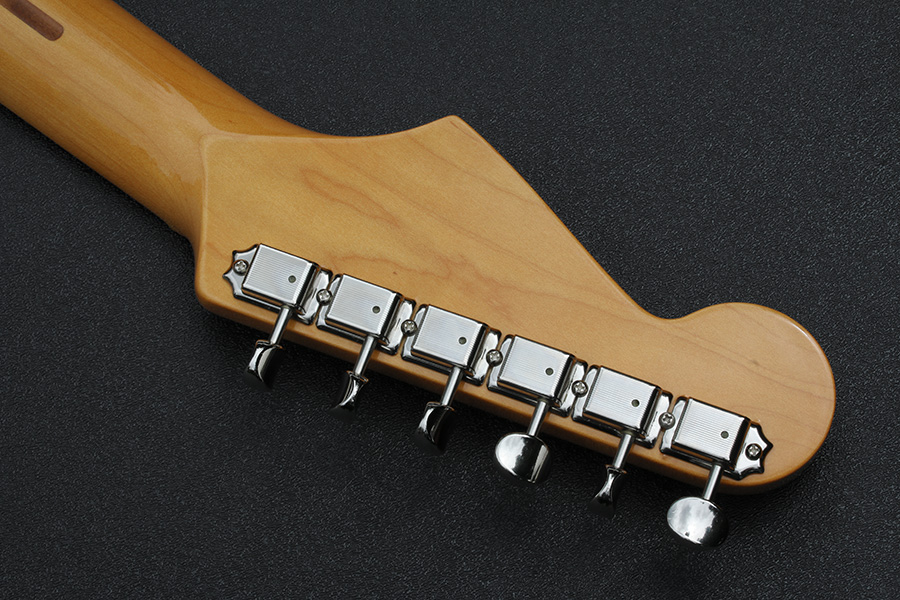

  • Used 2005 American Vintage '57 RI Maple Neck

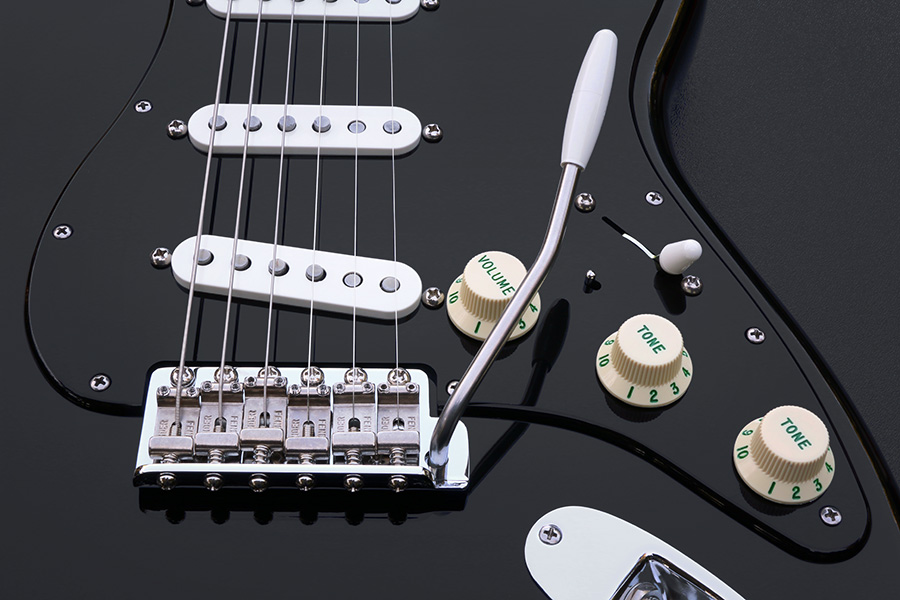

  • Vintage 2-7/32" Spacing Tremolo Bridge Assembly

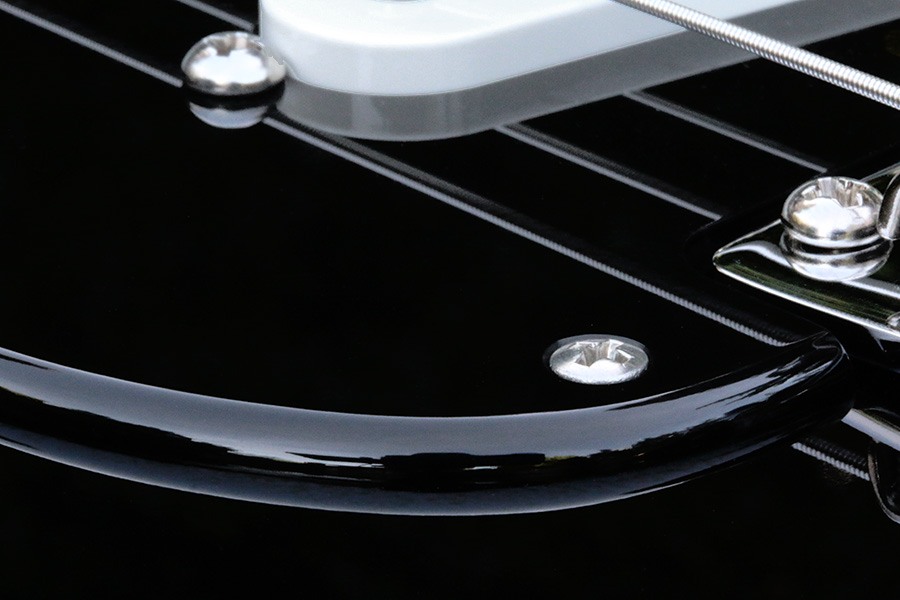

  • Custom Manufactured Black 1 Ply 0.120" Acrylic Pickguard with a Rounded and Polished Perimeter Edge
  • Fat '50 Neck Pickup
  • Custom '69 NOS Middle Pickup
  • Seymour Duncan Custom Shop, SSL-1C DG Rw/Rp (Reverse Wind / Reverse Polarity) Bridge Pickup
  • Custom Designed Electronics With 7 Unique Pickup Selections
  • Custom Manufactured 4-1/4" Stainless Steel Tremolo Arm

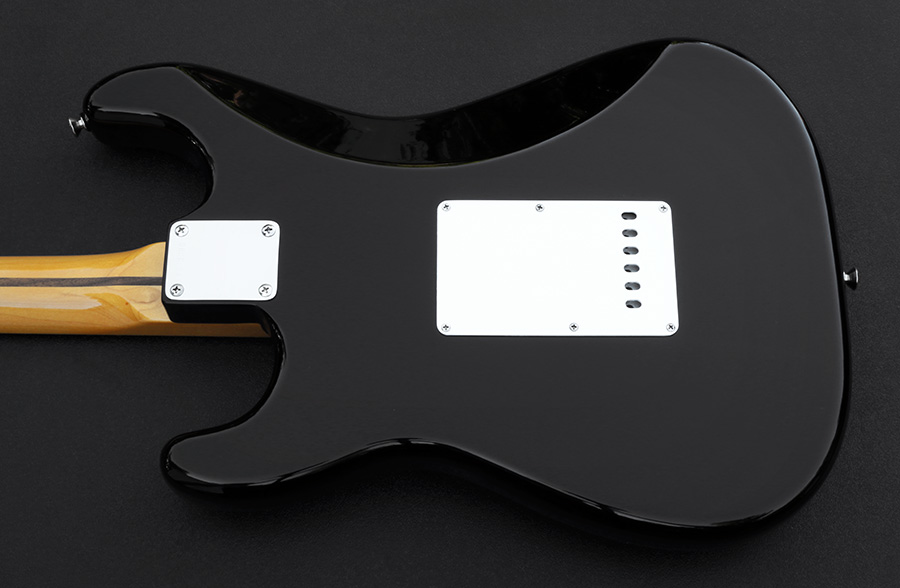

  • Vintage 1 Ply White Tremolo Cover Plate
  • Parchment Pickup Covers and Switch Tip

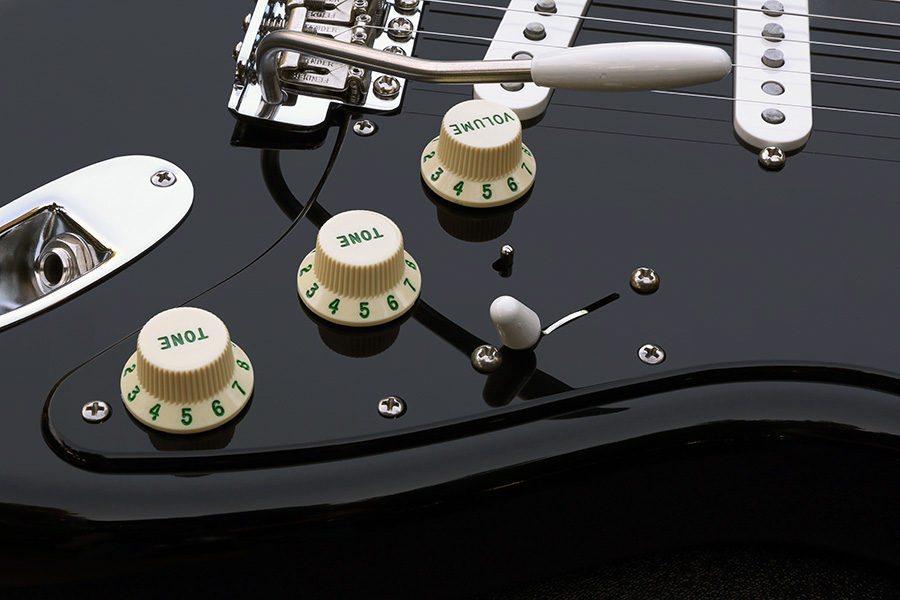

  • Customized Aged White Volume and Tone Knobs With Green Letters and Numbers Simulating the Natural Patina a Vintage Knob Sets Gold Letters and Numbers Turn to After Years of Natural Aging
  • 0.047 uF Orange Drop Polyester Film Tone Capacitor
  • 5-Way Selector Switch.

This guitar was assembled in the OverDrive Custom Guitar Works' shop from the necessary parts to replicate the visual appearance and sonic characteristics of a Gilmour themed Black Strat. The body and neck were purchased from private parties/individuals. This is NOT an original complete guitar as sold by Fender®.

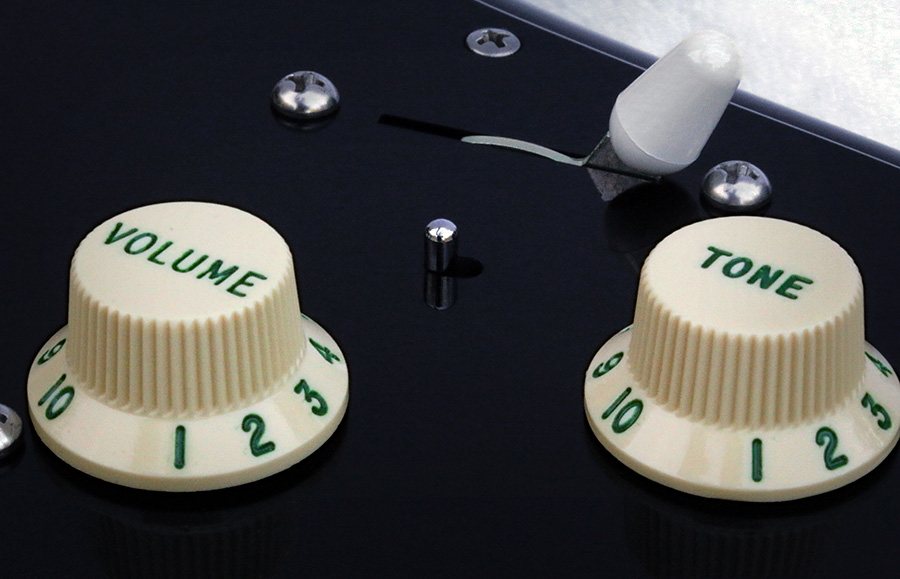

This guitar has an added advantage of two pickup selection positions of hum cancelling.  The installed Seymour Duncan Custom Shop SSL-1C DG Rw/Rp bridge pickup was specially hand scatter-wound for us with reverse polarity pole pieces and since it is already reverse wound in reference to CS69 and Fat 50 pickups it offers you hum cancelling when the bridge and middle pickups are selected together and when the bridge and neck pickups are selected together via the recessed mini-toggle switch.
