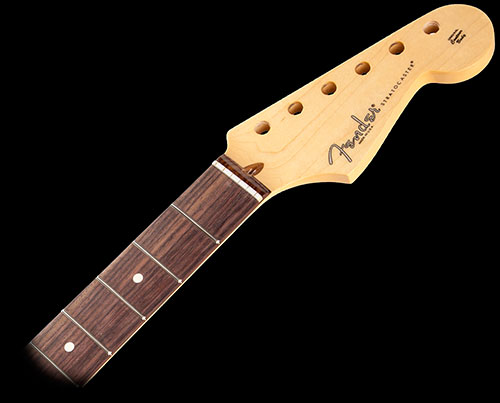

 Genuine U.S.-made Fender
Stratocaster® guitar maple neck features a
comfortable “modern C” profile and 9.5”-radius
rosewood fingerboard with 22 medium
jumbo frets and rolled edges. Also includes
Bi-Flex™ truss rod and pre-slotted synthetic
bone nut. Tinted satin urethane finish on back
for smooth feel. String
tree is not included and its mounting hole will
need to be drilled.
Because Fender genuine
replacement necks have not been mounted to
guitar bodies, nut slots must be cut by
qualified personnel. Other installation
processes may be required, such as fret work,
fitting the neck to the neck pocket, and other
instrument setup procedures. Your local FMIC
Authorized Service Center can install genuine
replacement necks
This replacement neck is for a Fender or Squier®
by Fender guitar. Price: $549.99
(USA Shipments Only)
Specifications and Features:
- Fingerboard:
Rosewood
- Number of Frets: 22
- Fret Size: Medium Jumbo
- Neck Shape: Modern "C"
- Neck Material: Maple
- Neck Finish: Satin Urethane on Back of
Neck, Gloss on Face of Headstock
- Fingerboard Radius: 9.5" (241 mm)
- Scale Length: 25.5" (648 mm)
- Nut Material: Synthetic Bone (Melamine)
- Nut Width: 1.685" (42.8 mm)
- Position Inlays:
White Dot
- Truss Rod: Bi-Flex™ Design with 1/8"
Truss Rod Adjustment Nut
- Built-In Micro Tilt™ Neck Adjustment
System
- 6 Pre-Drilled Tuning Machine Holes with
2-Guide Pin Holes for Each Tuning Machine
- Each neck is serialized and stamped
during quality inspection
- Walnut "skunk" stripe on back of neck
- Fender® Logo Decal includes "Made in
USA" and "Original Contour Body"
Each nut is pre-slotted with “pilot” string
location grooves to make spacing a breeze when
performing the final string slot filing. (Please
note: Final string slot filing and nut shaping
modification is required to ensure proper fit
and performance.)
Measurements:
Peg Hole Diameter - .404” (10.26 mm)
Headstock Thickness - .540” (13.71 mm)
Thickness at the 1st Fret - .820” (20.82 mm)
Thickness at the 12th Fret - .870” (22.09 mm)
Recommended
Tuning Machines:
|
