Item # 007-8776-049

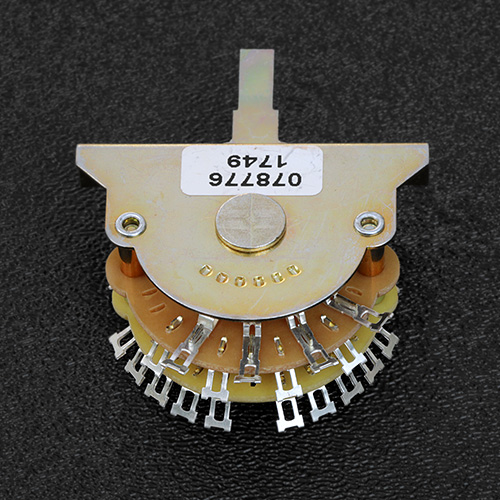

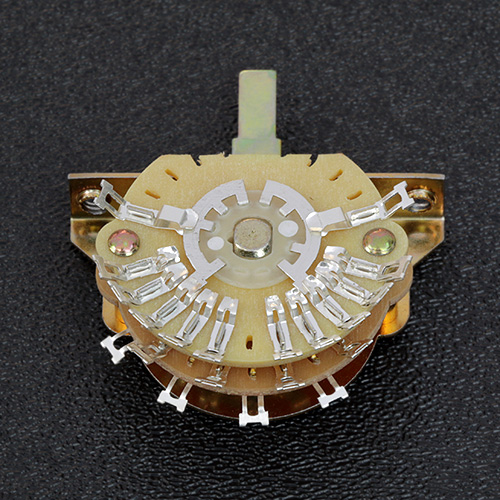

Fender 5 Position 4 Pole Discrete Pickup Selector Switch

007-8776-049 0078776049 007-8776-000 0078776000 - Fender Discrete/Com 5-Way Selector Switch

This is a unique and relatively new design selector switch, Fender calls it their 5 position 4 pole discrete pickup selector switch. Used on American Deluxe, Pro, Elite and Ultra HSS Stratocasters® that typically feature an S1 system.

Does not include mounting screws or switch tip.

Plain Packaged.

Fender changed the part number for this switch from 007-8776-000 to 007-8776-049. Both part numbers are for the same switch no matter which part number may be on the one you receive.

Fender's® current production of these switches has the switch lever portion approximately 1/8" taller than other selector switches, this will place the plastic tip a further away/higher from the pickguard surface. If you don't want a higher switch tip, we can still custom build you one of these switches that will have the normal height on the switch tip.

Support Documents (list may not represent all applications)

  • 2011 and newer American Deluxe Strat® service/wiring diagram available here.

  • 2014 and newer American Standard HSS Strat® with the Shawbucker and two Fat 50's.  Service/wiring diagram available here.

  • 2016 and newer American Elite Strat® service/wiring diagram available here.

  • 2017 American Professional HSS Strat service/wiring diagram available here.

Price: $32.00 Each


This electronic item does not qualify for return.

NOTE: Prior to 1/20/2018 we custom manufactured these switches, but now Fender® has released this switch as a replacement part, so the ones offered here are a genuine Fender® built and assembled switch.

007-8776-000 0078776000 007-8776-049 0078776049- Fender Discrete/Com 5-Way Selector Switch

007-8776-000 0078776000 007-8776-049 0078776049- Fender Discrete/Com 5-Way Selector Switch
