Item # 001-9268-049

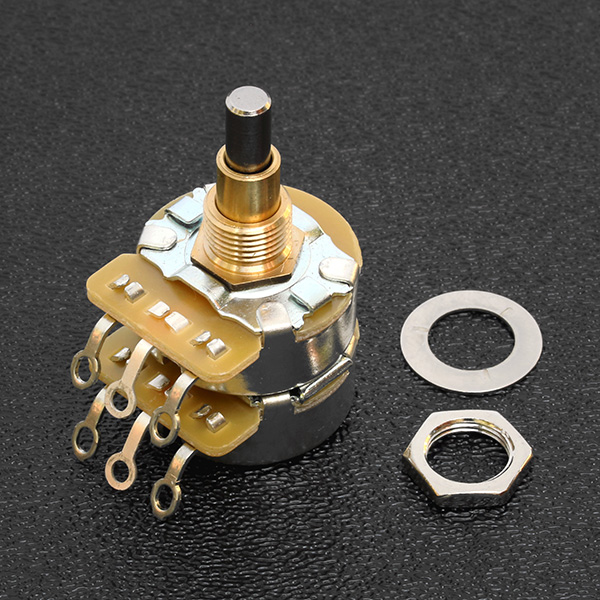

Genuine Fender® (CTS) 500K / 250K Concentric Solid Shaft Volume and Tone Potentiometer

001-9268-049 0019268049 - Fender 500k/250k Solid Shaft Concentric Potentiometer

Genuine Fender® (CTS) 500K/250K concentric solid shaft audio taper volume / tone potentiometer.  Accepts set-screw mount concentric control knob set, will not work with push-on style knobs. Includes flat dress washer and securing hex nut.

  • 500K/250K stacked pot design
  • 3/8" mounting shaft diameter.
  • 1/4" mounting bushing length.
  • 24mm case diameter.
  • 1.7" overall length of entire unit.
  • 0.187" inner rotating solid shaft diameter.
  • 0.320" inner rotating solid shaft length.
  • 0.265" secondary/outer rotating shaft diameter.
  • 0.240" secondary/outer shaft length.
  • 0.560" overall length of both rotating shaft(s) above threaded bushing.
  • Inner rotating shaft operates the 250K portion which is the bottom pot as illustrated to the right.
  • Outer or secondary rotating shaft operates the 500K portion which is the upper pot as illustrated to the right.



Price: $10.75 Each
