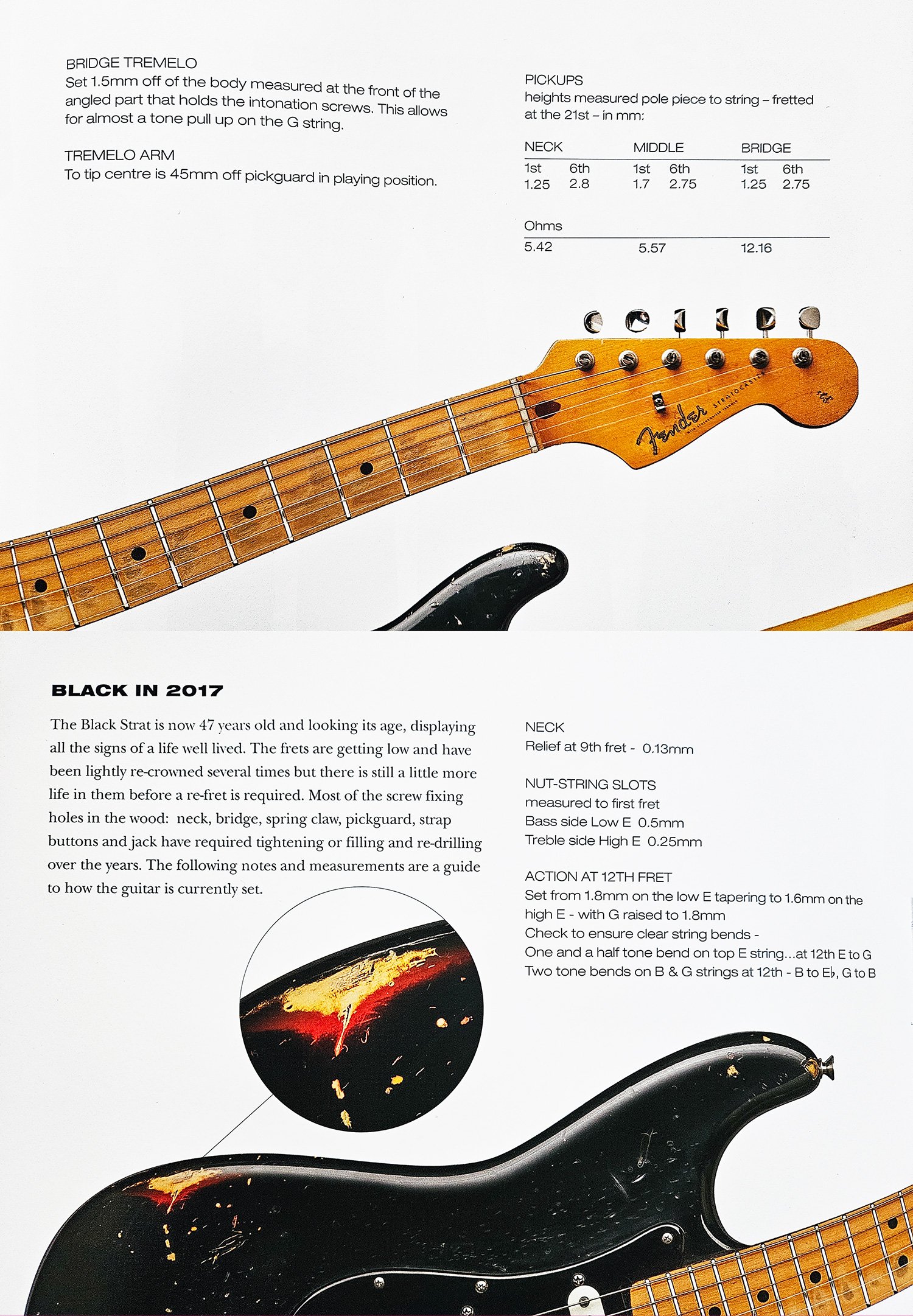

Attachment Threading Tip Height Arm Diameter OCGW Threading OD Industry Standard
Min / Max Threading OD
Strong Bend
American Strat - 10-32 RED POINT 0.1861" 0.184" - 0.185" 0.184" - 0.190"
4-1/4"
5-1/4"
6"
Flush = 2-1/4"     -  Float = 2"        -  Up Swing = 15°  -  Forward = 22°
Flush = 2-3/8"     -  Float = 2"        -  Up Swing = 31°  -  Forward = 22°
Flush = 2-1/2"     -  Float = 2"        -  Up Swing = 31°  -  Forward = 22°
81°
86°
87°

OEM - Am. Standard Strat - 6" Flush = 2-13/16"   -  Float = 2-3/8"    -  Up Swing = 39°  -  Forward = 23° 89°

Import Strat - 5mm  BLUE POINT 0.1965" (4.991 mm) 0.193" 0.190" - 0.1959"
4-1/4"
5-1/4"
6"
Flush = 2-1/4"     -  Float = 2"        -  Up Swing = 15°  -  Forward = 22°
Flush = 2-3/8"     -  Float = 2"        -  Up Swing = 31°  -  Forward = 22°
Flush = 2-1/2"     -  Float = 2"        -  Up Swing = 31°  -  Forward = 22°
81°
86°
87°

Deluxe / Elite Strat - Pop-In   0.2185"
4-1/4"
5-1/2"
Flush = 2-1/2"     -  Float = 2-1/4"    -  Up Swing = 23°  -  Forward = 23°
Flush = 2-5/8"     -  Float = 2-1/8"    -  Up Swing = 23°  -  Forward = 23°
73°
77°

Professional Strat - Pop-In   0.1861"
4-1/4"
5-1/4"
6"
Flush = 2-3/8"     -  Float = 2-1/8"    -  Up Swing = 24°  -  Forward = 22°
Flush = 2-?/?"     -  Float = 2-1/8"    -  Up Swing = 24°  -  Forward = 22°
Flush = 2-?/?"     -  Float = 2-1/8"    -  Up Swing = 24°  -  Forward = 22°
71°
75°
76°
6"  OEM Flush = ?          -  Float = ?         -  Up Swing = 24°  -  Forward = 24° 79°



Original Fender Deluxe / UItra / Elite Strat Pop-In Tremolo Arm Specifications

Arm Diameter  Description                                                  Bend Angles

0.2179”       Original Fender OEM CAR Deluxe Strat® Tremolo Arm            74° strong, 14° forward, 22° up
0.2142”       #003-6534-000 Ultra Strat® Replacement Tremolo Arm           76° strong, 14° forward, 16° up
0.216”        #099-2300-100 Deluxe Locking Bridge Tremolo Arm (w/wrench)   81° strong, 14° forward, 17° up

0.215”        Included with #007-7092-049 Deluxe Bridge Assembly           79-82° strong, 14° forward, 16° up
                  We've sampled a number of these tremolo arms and they vary from 74-82 degrees.


Original Fender '50s and '60s Strat Tremolo Arm Specifications
'50s          83°,   5-3/4"
'60s          83.5°, 5-1/2"


Specs Taken From OEM Tremolo Arm Samples
Tremolo Arm Thread Type Arm Diameter Threading Diameter Found On OEM Samples Overall Arm Length
American Strat UNF 10-32 0.1875" 0.1841" 6"
Mexican Strat 5mm (M5 x .8) 0.197" (5.01 mm) 0.1875" (4.7625 mm)   6.5"
Squier Strat 5mm (M5 x .8) 0.197 (5.01 mm) 0.191" (4.8514 mm) 6.75"
Squier Strat 6mm (M6 x 1.0) 0.205" (5.207 mm) 0.232" (5.8928 mm)   6.5"
American Deluxe / Ultra Strat (Pop-In) 0.214" to 0.218"  (0.004" Variance) Depending on particular sample tested. 5.5"

#1

American Strat UNF 10-32


Industry Standard: 0.184" to 0.190"

 <Minimum ----- Industry Standard Size Allowance ---- Maximum>


0.184"    0.185"    0.186"    0.187"    0.188"    0.189"    0.190"
 <
x--------x---------o---------o---------o---------o--------->

|        |
Fender     Ours
0.1841"    0.185"



#2

Mexican Strat and Squier Strat® Metric 5mm (M5x.8)

Industry Standard: 0.190" to 0.1959"

<------------------  Under Size  ---------------><Minimum ---- Industry Standard Size Allowance ---- Maximum>

0.185"   0.186"    0.187"    0.188"    0.189"    0.190"    0.191"    0.192"    0.193"    0.194"    0.195"   0.1959"
<--------x---------o----
x----o---------
o---------<---------x---------o---------o---------o----x----o-------->
         |              |                                  |                                  |
       Fender         Fender                             Squier                              Ours
       Mexico(1)      Mexico(2)                          By Fender                           0.1945"
       0.186"         0.1875"                            0.191"


#3

Squier By Fender Strat Metric 6mm (M6x1.0)


[ DISCONTINUED TREMOLO ARM - MAY 2015 ]

Industry Standard: 0.228" to 0.2351"

<Minimum --------- Industry Standard Size Allowance ----------- Maximum>

0.228"    0.229"    0.230"    0.231"    0.232"    0.233"    0.234"     0.2351"
<---------o---------x---------o---------x---------o---------o---------->
                    |                   |
                   Ours               Squier
                   0.230              By Fender
                                      0.232"
