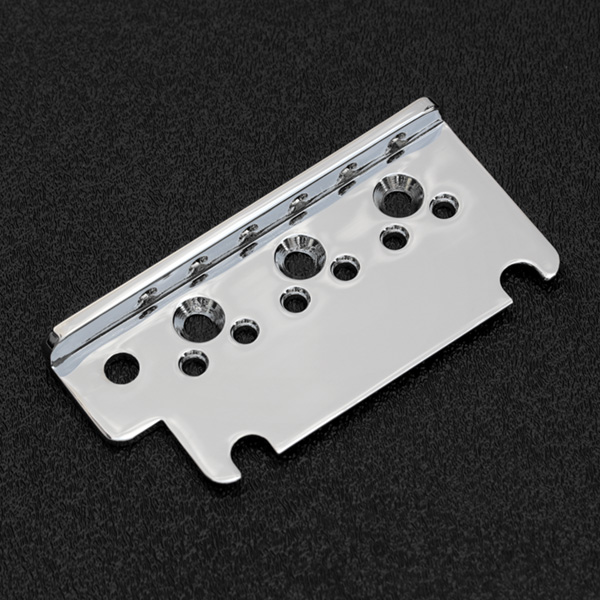

Genuine Fender® American Standard Stratocaster®
Chrome Bridge Plate. 2.2" center to center
spacing for the two mounting pivot pins. String
spacing 2-1/16". Used on 2008 to 2016 American
Standard Strat's with the vintage style bent
steel saddles.
To be used with narrow spaced 2-1/16"
centered intonation screw saddles
only,
such as
007-5123-049 or
PS-8000-00.
None of the offset intonation screw saddles are
compatible with this bridge plate.
Plain Packaged. Price: $40.00
Each
If
you don't have top plate mounting screws we have
them at 268-758-3071.
|
|
|
IMPORTANT INSTALLATION NOTE
YOU MUST READ AND FOLLOW THESE
INSTRUCTIONS:
A common
procedure to installing a top plate to
a tremolo block is as follows: Install the top
plate onto your tremolo block, but BEFORE you tighten
down the top plates three mounting screws to a
final tightness (they should be loose),
install your tremolo arm down through its
pass-through hole in
the top plate and screw the tremolo arm in as far as it will go into
the tremolo block, don't over-tighten it, just
screw it in until it stops, the top plate should
still be loose and able to move around freely on
the tremolo block and only once the tremolo arm
is screwed all the way in do you tighten down the three top plate
mounting screws. If you do not perform
this procedure you may find that the tremolo arm
pass-through hole in the top plate may slightly
impede the path of the tremolo arm from screwing
into the tremolo block freely. What happens is
the side of the tremolo arm will make contact on
the side of the tremolo arm pass-through hole in
the top plate and cause rotational friction of
the tremolo arm preventing it from screwing in
freely. You end up with a tremolo arm that is
firm, difficult to screw in or has tight and
loose spots in its rotation, if this occurs,
STOP, DO NOT continue to force the tremolo arm
to screw in, YOU WILL will damage your parts and
it will be your fault. The tremolo arm should
screw in freely without any resistance and
should screw-in at least 6-8 turns further than
the point where the last threaded portion of the
tremolo arm goes down below the surface of the
top plate. Once the tremolo arm is screwed in
all the way you should NEVER be able to see any
portion of the tremolo arms screw-in threads
above or near the surface of the top plate. The
above procedure is the best way to make sure of
a good alignment between the top plate and
tremolo block. However, this not a cure-all, it
does not always work perfectly, sometimes after
performing the above procedure you may find the
tremolo arm is still rubbing on the edge of the
top plates tremolo arm pass-through hole, if
this occurs, loosen the top plates three
mounting screws and more than likely you may
need to perform the above procedure again and /
or slightly enlarge the tremolo arm pass-through
hole in the top plate. Try rotating the tremolo
arm 180 degrees and repeating the above
procedure. This is one of the side effects of
Fender's manufacturing equipment stamping top
plates with specs that are not a perfect match
for tremolo block specs. They work a lot times,
but they don't always work every single time
without some sort of massaging to the parts
necessary for a good mating. Until Fender begins
using CNC machinery to create tremolo blocks and
top plates with identical hole / mounting
spacing's for perfect mating's between these
components, these difficulties will continue to
exist and some sort of compensation may need to
be made...
|
