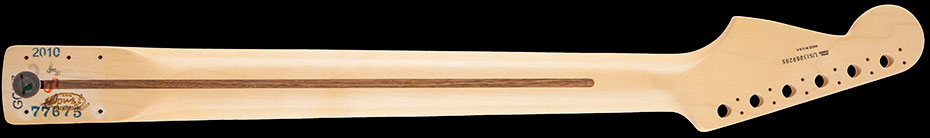

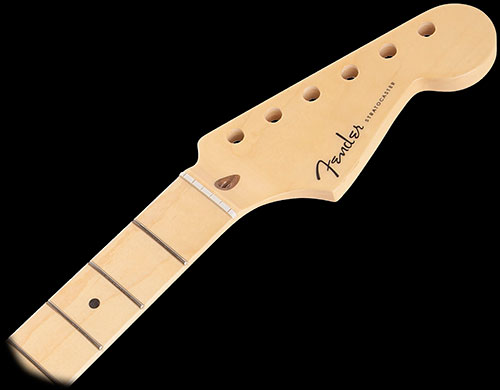

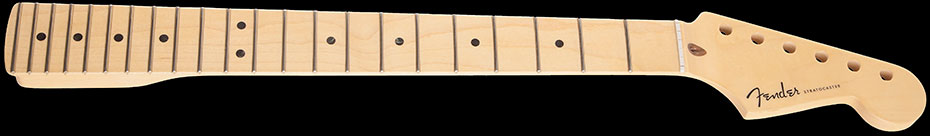

Item #099-9002-921 Genuine Fender® USA Strat® Replacement Neck
22 Medium Jumbo Frets, Maple Fingerboard, Compound Radius 9.5" to 14"

099-9002-921 Genuine Fender Stratocaster Replacement Neck 22 Medium Jumbo Frets, Maple Fingerboard, Compound Radius 9.5" to 14"Genuine U.S.-made Fender Stratocaster® guitar maple neck. Features include a comfortable “modern C” profile and 9.5”-14" compound radius maple fingerboard with 22 medium jumbo frets and rolled edges, Bi-Flex™ truss rod, pre-slotted synthetic bone nut and a tinted satin urethane back and gloss headstock face. String tree is not included and its mounting hole will need to be drilled.

This replacement neck is for a Fender or Squier® by Fender guitar.

Price: $569.99 (USA Shipments Only)

Specifications and Features:

  • Fingerboard: Maple
  • Number of Frets: 22
  • Fret Size: Medium Jumbo
  • Neck Shape: Modern "C"
  • Neck Material: Maple
  • Neck Finish: Tinted Satin Urethane Back with Gloss Headstock Face
  • Fingerboard Radius: 9.5"-14" Compound Radius (241 mm-355.6 mm)
  • Scale Length: 25.5" (648 mm)
  • Nut Material: Synthetic Bone (Melamine)
  • Nut Width: 1.6875" (42.8 mm)
  • Position Inlays: Black Dot
  • Truss Rod: 1/8" Truss Rod Adjustment Nut
  • 6 Pre-Drilled Tuning Machine Holes with 2-Guide Pin Holes for Each Tuning Machine
  • Each neck is serialized and stamped during quality inspection
  • Walnut "skunk" stripe on back of neck
  • Single string tree design (No pilot holes drilled for string tree)
  • Fender® Foil Logo Decal with "Made in U.S.A." on back of headstock

Note: Neck is pre-drilled with five holes to accommodate either a traditional 4-bolt neck mounting design OR an offset (asymmetrical) 4-bolt design. Neck is compatible with American Deluxe, American Standard and most Mexico Standard bodies.

Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)

Measurements:

  • Peg Hole Diameter - .404” (10.26 mm)
  • Headstock Thickness - .540” (13.71 mm)
  • Thickness at the 1st Fret - .820” (20.82 mm)
  • Thickness at the 12th Fret - .870” (22.09 mm)

Recommended Tuning Machines:

Recommended String Trees: 099-4911-000 or 003-9475-049.

099-9002-921 Genuine Fender Stratocaster Replacement Neck 22 Medium Jumbo Frets, Maple Fingerboard, Compound Radius 9.5" to 14"

099-9002-921 Genuine Fender Stratocaster Replacement Neck 22 Medium Jumbo Frets, Maple Fingerboard, Compound Radius 9.5" to 14"

099-9002-921 Genuine Fender Stratocaster Replacement Neck 22 Medium Jumbo Frets, Maple Fingerboard, Compound Radius 9.5" to 14"
