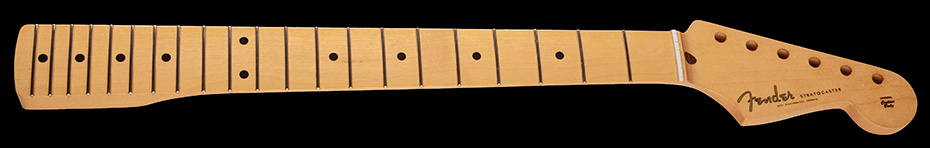

Fender Stratocaster® guitar maple neck features
a comfortable “soft V” profile and 7.25”-radius
maple fingerboard with 21 vintage-style frets.
Also includes standard truss rod and pre-slotted
synthetic bone nut. Gloss urethane finish for
smooth feel. Crafted at Fender’s Ensenada,
Mexico, manufacturing facility.
String tree is not
included and its mounting hole will need to be
drilled. For true Fender
authenticity it has the "Fender Stratocaster"
and "Original Contour Body" logo decals and it's serialized. This replacement neck is for a Fender or
Squier® by Fender guitar.
(USA Shipments Only)
- Fingerboard: Maple
- Number of Frets: 21
- Fret Size:
- Neck Shape: Soft "V"
- Neck Material: Maple
- Neck Finish: Gloss
- Fingerboard Radius:
7.25" (184.1 mm)
- Scale Length: 25.5"
- Nut Material:
Synthetic Bone (Melamine)
- Nut Width: 1.650"
- Position Inlays:
- 3/16" Truss Rod Nut
(adjustable at headstock)
- 6 pre-drilled tuning
machine holes designed to fit vintage-style
2-screw mount tuning machines
- Each neck is
serialized and stamped during quality
- Walnut "skunk"
stripe on back of neck
- Fender® Logo with
"Original Contour Body" Decal
Each nut is pre-slotted
with “pilot” string location grooves to make
spacing a breeze when performing the final
string slot filing. (Please note: Final string
slot filing and nut shaping modification is
required to ensure proper fit and
tuner mounting holes are pre-drilled
with a pilot hole sized for #3 mounting
screws. Do NOT use the smaller #2 sized
mounting screws that come supplied with
some tuners, you will strip the mounting
holes. #3 sized mounting screws
have a 0.10" outside diameter of the
threads, these are what you want.
#2 sized mounting screws have a 0.085"
outside diameter of the threads, these
are what you DO NOT want! If
you are unsure as to which size mounting
screws you have, measure them with a
dial or digital caliper across the
largest part of the threads.
- Peg Hole Diameter -
.358” (9.09 mm)
- Headstock Thickness
- .540” (13.71 mm)
- Thickness at the 1st
Fret - .820” (20.82 mm)
- Thickness at the
12th Fret - .900” (22.86 mm)
