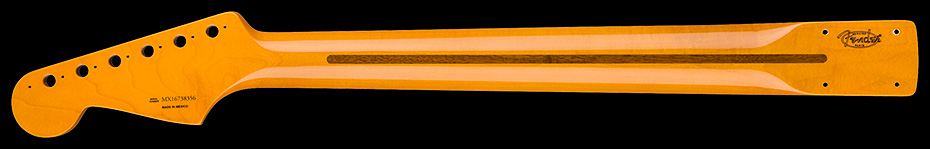

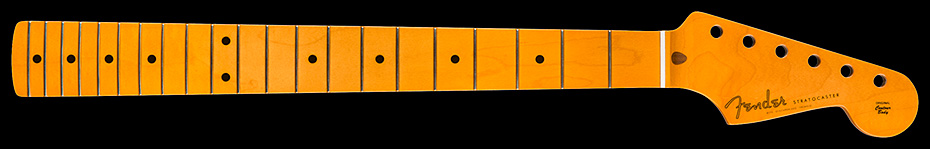

Item #099-0061-921 Genuine Fender® Strat® Replacement Neck
Nitrocellulose Lacquer, Vintage Style 50's, Soft V, 21 Vintage Frets, Maple Fingerboard, 7.25" Radius

Genuine Fender Stratocaster® guitar maple neck features a comfortable “soft V” profile and 7.25”-radius maple fingerboard with 21 vintage-style frets. Also includes standard truss rod and pre-slotted synthetic bone nut. Nitrocellulose lacquer finish for authentic vintage look and feel. Crafted at Fender’s Ensenada, Mexico, manufacturing facility. String tree is not included and its mounting hole will need to be drilled. For true Fender authenticity it has the "Fender Stratocaster" and "Original Contour Body" logo decals and it's serialized. This replacement neck is for a Fender or Squier® by Fender guitar.

Short of paying $800 or more for an '57 AVRI maple neck this neck is the perfect alternate choice at a fraction of the cost!

Price: $249.99 (USA Shipments Only)

Specifications and Features:

  • Fingerboard: Maple
  • Number of Frets: 21
  • Fret Size: Vintage-Style
  • Neck Shape: Soft "V"
  • Neck Material: Maple
  • Neck Finish: Nitrocellulose Lacquer
  • Fingerboard Radius: 7.25" (184.1 mm)
  • Scale Length: 25.5" (648 mm)
  • Nut Material: Synthetic Bone (Melamine)
  • Nut Width: 1.650" (42 mm)
  • Position Inlays: Black Dot
  • 3/16" Truss Rod Nut (adjustable at headstock)
  • 6 pre-drilled tuning machine holes designed to fit vintage-style 2-screw mount tuning machines
  • Each neck is serialized and stamped during quality inspection
  • Walnut "skunk" stripe on back of neck
  • Fender® Logo with "Original Contour Body" Decal
  • Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance).

    The tuner mounting holes are pre-drilled with a pilot hole sized for #3 mounting screws. Do NOT use the smaller #2 sized mounting screws that come supplied with some tuners, you will strip the mounting holes.  #3 sized mounting screws have a 0.10" outside diameter of the threads, these are what you want.  #2 sized mounting screws have a 0.085" outside diameter of the threads, these are what you DO NOT want!   If you are unsure as to which size mounting screws you have, measure them with a dial or digital caliper across the largest part of the threads.

Measurements:

  • Peg Hole Diameter - .358” (9.09 mm)
  • Headstock Thickness - .540” (13.71 mm)
  • Thickness at the 1st Fret - .820” (20.82 mm)
  • Thickness at the 12th Fret - .900” (22.86 mm)
Recommended Tuning Machines:

Recommended String Trees: 099-4910-000 or 099-2083-000
